Ballast set for Sprite HOT is made for the flights in the dynamic flows on the slopes of hills (Slope soaring) and also for Dynamic soaring.
The maximum ballast of 750g can be used only for the carbon version of Sprite HOT .
Ballast is assembled on the wire cable, which makes possible for ballast to be flexible.
Ballast has several openings for the fastening, which makes it possible to change the centering of model.

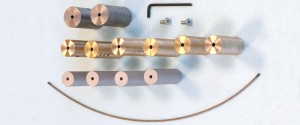

The set includes:
1) Aluminum loads with the diameter of 16mm and the length of 50mm - 4 pcs;
2) Brass loads with the diameter of 18mm and the length of 52mm - 6 pcs;
3) Brass loads with the diameter of 22mm and the length of 45mm - 2 pcs;
4) Screws for fixing of ballast in the fuselage (also one spare screw);
5)Key for the screws.
Typical Ballasts for Sprite HOT of carbon (the weight of the empty model is 960g ):
 |
 |
|
The weight of ballast: 750г Wing loading: 46.84 г/дм2 |
The weight of ballast: 620г Wing loading: 43.28 г/дм2 |
 |
 |
|
The weight of ballast: 462г Wing loading: 38.95 г/дм2 |
The weight of ballast: 308г Wing loading: 34.70 г/дм2 |
For flights in thermals you can use a lighter ballast Sprite Thermal
