    logo elf pro el

    You can buy spare parts for Elf Pro El



    #

    Item

    ELF PRO El

    1

    Elf Pro El Wing

    ELF Wing

    108,30 €

    Buy

    2

    Elf Pro El Fuselage

    ELF PRO EL (Spin El) Fuselage set

    56,00 €

    Buy

    3

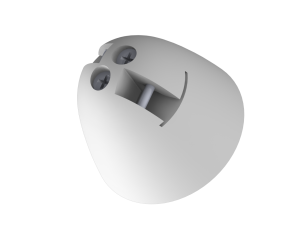

    Elf Pro El Nose cone

    ELF PRO El Nose Cap (with canopy)

    8,00 €

    Buy

    4

    Elf Pro El Canopy

    ELF PRO (Spin) Canopy

    3,00 €

    Buy

    5

    Elf Pro El Stabilizer

    ELF PRO (Spin) Stabilizer

    16,00 €

    Buy

    6

    Elf Pro El Fin

    ELF PRO El (Spin El) Fin

    13,20 €

    Buy

    7






    1105 motor adapter

    You can use 1105 motor, using adapter from the model kit.

    spin_el_elf_pro_el_fin_01
    01 spin_elf pro elevator servo neutral position
    02 spin_elf pro fus mount plate
    03 spin_elf pro rudder servo neutral position

    Attention: color of characteristic elements please specify in the letter. Just copy the text to the right of your desired image and specify the item color from our palette of wing.

    elf wing palette



    Elf Pro El color cheme





    ELF Pro El neon red



    elf pro el neon red



    ELF Pro El white



    elf pro el white



    ELF Pro El blue



    elf pro el blue

    ELF Pro El orange



    elf pro el orange



    ELF Pro El red



    elf pro el red



    ELF Pro El violet



    elf pro el violet





    Contents of ELF Pro El kit



    elf pro el kit set

    1. Contest of accessoires Elf Pro El kit;

    2. Elf Pro El wing

    3. Elf pro El fuselage with already installed rods, stabilizer pylon;

    4. Elf Pro El nose cone;

    5. Elf Pro El canopy;

    6. Elf Pro El stabilizer with ready elevator;

    7. Elf Pro El fin with ready rudder.





    Contest of accessoires Elf Pro El kit





    elf pro el accessoires kit 1

    1. 3pcs  M2x5 self tapping screws for fixing servos to the fuselage servo frame;

    2. Fuselage servo frame;

    3. M2x14 self tapping screw for fuselage servo frame fixing;

    4. M2x5 self tapping screw for fuselage servo frame fixing;

    5. M2x8 self tapping screw for horizontal stabilizer fixing;

    6. Skrew M3x8 for wing fixing;

    7. Elevator and rudder horns;

    8. Adapter for 1105 motor.


    Recommended equipment not included to the kit



    1. Servos Dymond D47 (or any servos same size) – 2 pcs;

    2. Micro 4-6 channel full range receiver without case;

    3. 2S1P LiPo 240-450 mAh. Max size: 15x21x47mm;

    4. Motor 1106 5500-8000KV or 1105 with adapter (from the kit);

    5. ESC 7-12A;

    6. Prop blades: Graupner CAM folding prop  4,7”/2,2”.

    VM Spinner 25/1106 white transparent VM Spinner 25/1106 white transparent
    VM Spinner 25/1106 is made for ELF Pro El and Spin El. It will fit to 1106 motor or for 1105 motor with adapter.

    And it will fit for CAM folding prop 4,7’/2,3’

    You can use 1105 motor with 1,5 mm adapter
    more info Buy 8,00 €
    VM Spinner 25/1106 black VM Spinner 25/1106 black
    VM Spinner 25/1106 is made for ELF Pro El and Spin El. It will fit to 1106 motor or for 1105 motor with adapter.

    And it will fit for CAM folding prop 4,7’/2,3’

    You can use 1105 motor with 1,5 mm adapter
    more info Buy 16,50 €
    VM Spinner 25/1106 blue VM Spinner 25/1106 blue
    VM Spinner 25/1106 is made for ELF Pro El and Spin El. It will fit to 1106 motor or for 1105 motor with adapter.

    And it will fit for CAM folding prop 4,7’/2,3’

    You can use 1105 motor with 1,5 mm adapter
    more info Buy 8,00 €
    ELF Silver Wing Bag

    ELF Silver Wing Bag

    The Wing Bag sewn from polyethylene foam laminate protection fabric. It is glued the logo of your model and sewn on stickies to secure bags on the wings. You have a great opportunity to ensure safety of your models during transportation and protect them from ultraviolet radiation.
    Buy 14,00 €
    Cam Prop 4,7 Cam Prop 4,7
    PA/carbon prop for Elf Pro El and Spin El.

    4,7’- 2.3’

    Hub wide- 4mm
    Buy 5,50 €
    Elf/Spin 1106 power set Elf/Spin 1106 power set
    Completely ready for use - you just need to screw it.

    Connect it direct to receiver to the motor channel. Please connect battery to receiver direct also.

    Only for HV servos and HV receiver!
    Buy 57,00 €

    Technical data of Elf Pro El

       ELF PRO El

    Aerodynamic characteristics

    Wing span

    39 in

    1.0m

    Wing area

    181 in²

    11.7 dm²

    Length

    27.63 in

    702 mm

    Wing air foils

    AG12, AG13, AG14

    Wing aspect ratio

    8.55%

    Сenter of gravity

    3.07-3.22" from the leading edge

    Control surfaces

    Rudder, elevator, motor

    Weight characteristics

    Fuselage

    0.74 oz

    21 gr

    Wing

    1.76 oz

    50 gr

    Stabilizer

    0.1 oz

    3.5 gr

    Fin

    0.07 oz

    2 gr

    Accessories

    0.14 oz

    4 gr

    NT model weight

    2.8 oz

    80.5 gr

    Flight weight

    4.4 oz

    125 gr

    Wing loading

    10.68 gr/dm²

    10.68 gr/dm²

    Price, EUR

     209,00 €
    Buy



    Discount for students - 15%
    (with copy of student ID)

     182 EUR only

    draw elf pro el

    elf_pro_el_01

    Elf Pro El wing

    Axial loads are taken by carbon fiber spar, torsion loads are taken by D-shaped contour of front part of the wing. This contour is formed by carbon fiber pressure pad, enforced by rib and spar web.

    Carbon fiber pressure pad is latest development by Vladimir's Model, obtained by forming in rigid mold. Its main benefit is that it helps to preserve wing's aerodynamic profile in most critical places: near the leading edge and at wing tips. That leads to considerable reduction of induced drag.

    Carbon fiber center section turns to be a complex and attractive design element that joins spars, ribs and wing mounting screws. Besides, it hides receiver inside.

    Rear part of the wing consists of balsa ribs reinforced by carbon fiber stripes and carbon fiber trailing edge. Wing is covered by Oralight film.


    elf pro fuselage_6elf pro fuselage_51105 motor adapter

    Elf Pro El fuselage

    Fuselage construction based on Hi-Tech prepreg carbon boom with impact PA fairing and nosecone with canopy.

    You will be surprised at the ease of servo installation. Your friend never believe you, the where are 2 servos, battery, receiver and motor inside.

    Carbon elevator and ruder rods is installed already and has ready installed rod ends for fit to the horns.

    Horizontal stabilizer pylon is glued already and the boom has ready slot for the fin installation.









































    You can use 1105 motor, using adapter from the model kit.






    01 elf_pro_el_tail 00s1



    Elf Pro El tail

    Horizontal and vertical stabilizers is glass covering rohacell core with Hi-Tech carbon spar inside. It is ready completely with ready elevator and rudder hinges.


    spin_el_elf_pro_el_fin_01

    Installation

     Super easy installation: just screw two servos and glue two horns.

    01 spin_elf pro elevator servo neutral position
    02 spin_elf pro fus mount plate
    03 spin_elf pro rudder servo neutral position



    elf pro el1elf_pro_el_02



    ELF Pro El is electric version of the Worldwide known mini 1m DLG Elf.

    Amazingly small size of the model gives the pilot access to places he never dared to fly before (car parking, beaches, etc.). Ready to fly model fit perfect to any car Your will ready to fly every time, everywhere.

    Add the unmatched aerodynamic performance calculated by Dr. Drela, and we get incredibly controlled, fast, lightweight, and durable plane.

    ELF is a radio-controlled plane for everyone. Due to unparalleled controllability it can be easily controlled even by a novice.

    ELF Pro El is 99% ready to fly from the kit. The wing is full ready and covered, fuselage is full assembled, tail rods are installed, tail is full ready. You will spend nice half of hour for screw the servos, glue fin by Super Glue and glue 2 horns to the ready slots by Super Glue too.



    Technical data of Elf Pro El

       ELF PRO El

    Aerodynamic characteristics

    Wing span

    39 in

    1.0m

    Wing area

    181 in²

    11.7 dm²

    Length

    27.63 in

    702 mm

    Wing air foils

    AG12, AG13, AG14

    Wing aspect ratio

    8.55%

    Сenter of gravity

    3.07-3.22" from the leading edge

    Control surfaces

    Rudder, elevator, motor

    Weight characteristics

    Fuselage

    0.74 oz

    21 gr

    Wing

    1.76 oz

    50 gr

    Stabilizer

    0.1 oz

    3.5 gr

    Fin

    0.07 oz

    2 gr

    Accessories

    0.14 oz

    4 gr

    NT model weight

    2.8 oz

    80.5 gr

    Flight weight

    4.4 oz

    125 gr

    Wing loading

    10.68 gr/dm²

    10.68 gr/dm²

    Price, EUR



     209,00 €
    Buy

    Discount for students - 15%
    (with copy of student ID)

    182 EUR only
