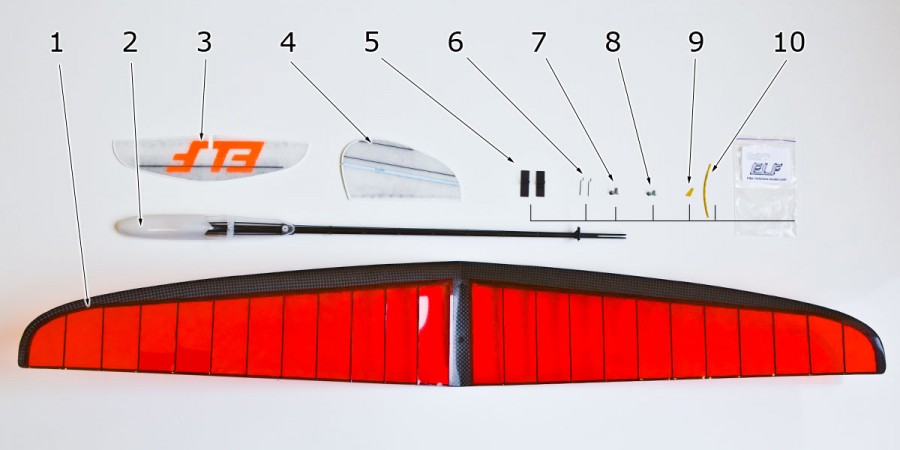

    Contents of ELF kit



    ELF kit
    1. Wing;

    2. Fuselage with the already glued pipes Bowden, pylon, and the V-mount;

    3. Integrally rotating stabilizer;

    4. Fin;

    5. Launch peg (2 piece).

    6. Servo pushrod adapters (Z);

    7. Wing mount screws longer – front (2 pieces, 1 - spare);

    8. Wing mount screws shorter – rear (2 pieces, 1 - spare);

    9. Rudder control horn;

    10. Pushrods pipe.


    Recommended equipment not included to the kit



    1. Servos Dimond D47;

    2. Micro receiver Spectrum AR6250 or AR6255. The AR 6060 case can be taken off and used in the ELF also

      ELF Silver Wing Bag ELF Silver Wing Bag
      The Wing Bag sewn from polyethylene foam laminate protection fabric. It is glued the logo of your model and sewn on stickies to secure bags on the wings. You have a great opportunity to ensure safety of your models during transportation and protect them from ultraviolet radiation.
      more info Buy 14,00 €

    Technical data of Elf

       ELF Glider DLG

    Aerodynamic characteristics

    Wing span

    39 in

    1.0m

    Wing area

    181 in²

    11.7 dm²

    Length

    27 in

    682 mm

    Wing air foils

    AG12, AG13, AG14

    Wing aspect ratio

    8.55%

    Сenter of gravity

    2.9-3.3" from the leading edge

    Control surfaces

    Rudder and elevator

    Weight characteristics

    Fuselage

    0.58 oz

    16.5 gr

    Wing

    1.45 oz

    41.0 gr

    Stabilizer

    0.12 oz

    3.3 gr

    Fin

    0.10 oz

    2.8 gr

    Accessories

    0.14 oz

    4.0 gr

     NT model weight

    2.46 oz

    69.6 gr

    Battery Smart LiPo 240

    0.40 oz

    11.4 gr

    Servos

    0.49 oz

    14.0 gr

    Flight weight

    3.35oz

    95 gr

    Wing loading

    2.6 oz/ft²

    8.1gr/dm²

    Price, EUR

     158,10 €
    Buy

    ELFmain assembly



    ELF wing D boxELF wing central part

    Wing

    Axial loads are taken by carbon fiber spar, torsion loads are taken by D-shaped contour of front part of the wing. This contour is formed by carbon fiber pressure pad, enforced by rib and spar web.

    Carbon fiber pressure pad is latest development by Vladimir's Model, obtained by forming in rigid mold. Its main benefit is that it helps to preserve wing's aerodynamic profile in most critical places: near the leading edge and at wing tips. That leads to considerable reduction of induced drag.

    Carbon fiber center section turns to be a complex and attractive design element that joins spars, ribs and wing mounting screws. Besides, it hides receiver inside.

    Rear part of the wing consists of balsa ribs reinforced by carbon fiber stripes and carbon fiber trailing edge. Wing is covered by Oralight film.


    ELF fuselageIMG_8290

    Fuselage

    For the first time in our design evolution the joint of tail boom with nose is omitted; that design boasts reduced weight and higher strength. It's the beam that carries the load of impact with the ground, not the cover.

    Shread-RC Li-Ion battery is specially designed for RC airplane models and is very convenient to handle. It can be charged by any DC source ranging from 5 to 15 V without any special adapters (for instance, it can be charged from your laptop's USB port or from your mobile phone charger).

    More than that, Shread-RC will inform you with sound alarm about the charge left.



    Easy assembly procedure

     When the nose cover is removed one can get access to all on-board equipment. That's very convenient. With design like this, one can easy install devices when assembling the model.

    Location of the equipment helps to precisely balance model with respect to its center of gravity.

    You won't need any additional balances when assembling the model according to the manual.



    ELF tail

    Fins

    Very lightweight fin at thoroughly calculated shoulder provides airplane with unique control in thermals and at conventional gliding. Stabilizer average weigh is just 0.116 oz, and one of a rudder – 0.099 oz.

    V-mount is a tiny but very complex part made of high strength polymer with just 0.011 oz of weight. The item consists of two parts joined with carbon-fiber axis. This allows to easily remove the stabilizer. The shape of a V-mount is a design marvel. The ends of a rod is fixed in the stabilizer's rocker in a full range of stabilizer's positions. To remove the rod one has to remove the stabilizer first.

    ELF tail 2

    ELF tail V mount

    Elf DLGELF mosquito DLG 3

    ELF is a new generation of hand-launched planes with 1m wing-span by Vladimir's Model. Amazingly small size of the model gives the pilot access to places he never dared to fly before (car parking, beaches, etc.)

    ELF is a radio-controlled plane for everyone. Due to unparalleled controllability it can be easily controlled even by a novice.

    ELF is a an example of state-of-the-art design process

    ELF's unique design, advanced technology, hand assembly stand behind simple elegant exterior, gentle in-flight behavior and low price.

    Computer modeling of ELF allowed us to predict position of center of gravity with high precision. That means you don't need to put any additional weights to balance the plane any more. That also means the plane has minimal weight and maximum strength.

    Add the unmatched aerodynamic performance calculated by Dr. Drela, and we get incredibly controlled, fast, lightweight, and durable plane.
