Servo MKS HV 75K
Torque (3.7V): 1.4 kg-cm / 19.4 oz-in
Torque (6.0V): 2.3 kg-cm / 31.9 oz-in
Torque (7.4V): 2.8 kg-cm / 38.9 oz-in
Torque (8.2V): 3.3 kg-cm / 45.8 oz-in
Speed: 0.21s (3.7V) / 0.13s (6.0V) / 0.10s (7.4V) / 0.09s (8.2V)
Weight: 7.5 g (+0.1 g) / 0.26 oz (+0.003 oz)
Dimension: 23 x 9 x 16.7 mm
Torque (6.0V): 2.3 kg-cm / 31.9 oz-in
Torque (7.4V): 2.8 kg-cm / 38.9 oz-in
Torque (8.2V): 3.3 kg-cm / 45.8 oz-in
Speed: 0.21s (3.7V) / 0.13s (6.0V) / 0.10s (7.4V) / 0.09s (8.2V)
Weight: 7.5 g (+0.1 g) / 0.26 oz (+0.003 oz)
Dimension: 23 x 9 x 16.7 mm
Servo MKS HV 75K-N
Torque (3.7V): 1.4 kg-cm / 19.4 oz-in
Torque (6.0V): 2.3 kg-cm / 31.9 oz-in
Torque (7.4V): 2.8 kg-cm / 38.9 oz-in
Torque (8.2V): 3.3 kg-cm / 45.8 oz-in
Speed: 0.21s (3.7V) / 0.13s (6.0V) / 0.10s (7.4V) / 0.09s (8.2V)
Weight: 7.4 g (+0.1 g) / 0.260 oz (+0.003 oz)
Dimension: 23 x 9 x 16.7 mm
Torque (6.0V): 2.3 kg-cm / 31.9 oz-in
Torque (7.4V): 2.8 kg-cm / 38.9 oz-in
Torque (8.2V): 3.3 kg-cm / 45.8 oz-in
Speed: 0.21s (3.7V) / 0.13s (6.0V) / 0.10s (7.4V) / 0.09s (8.2V)
Weight: 7.4 g (+0.1 g) / 0.260 oz (+0.003 oz)
Dimension: 23 x 9 x 16.7 mm
Servo MKS HV 6100
Torque (6.0V): 2.6 kg-cm / 36.1 oz-in
Torque (7.4V): 3.0 kg-cm / 41.7 oz-in
Torque (8.2V): 3.4 kg-cm / 47.2 oz-in
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 10 g (0.35 g)
Dimension：22.5 x 10 x 23.5 mm
Torque (7.4V): 3.0 kg-cm / 41.7 oz-in
Torque (8.2V): 3.4 kg-cm / 47.2 oz-in
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 10 g (0.35 g)
Dimension：22.5 x 10 x 23.5 mm
Servo MKS HV 6110
Torque (6.0V): 2.6 kg-cm / 36.1 oz-in
Torque (7.4V): 3.0 kg-cm / 41.7 oz-in
Torque (8.2V): 3.4 kg-cm / 47.2 oz-in
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 9.84 g (0.34 oz)
Dimension：22.5 x 10 x 23.5 mm
Torque (7.4V): 3.0 kg-cm / 41.7 oz-in
Torque (8.2V): 3.4 kg-cm / 47.2 oz-in
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 9.84 g (0.34 oz)
Dimension：22.5 x 10 x 23.5 mm
Servo MKS HV 6130
Torque (6.0V): 6.0 kg-cm / 83.3 oz-in
Torque (7.4V): 7.6 kg-cm / 105.5 oz-in
Torque (8.2V): 8.1 kg-cm / 112.5 oz-in
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 22.5 g (0.79 oz)
Dimension: 30 x 10 x 29.8 mm
Torque (7.4V): 7.6 kg-cm / 105.5 oz-in
Torque (8.2V): 8.1 kg-cm / 112.5 oz-in
Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
Weight: 22.5 g (0.79 oz)
Dimension: 30 x 10 x 29.8 mm
Servo MKS HV 6125E
Torque (6.0V): 2.3 kg-cm / 31.9 oz-in
Torque (7.4V): 3.0 kg-cm / 41.7 oz-in
Torque (8.2V): 3.5 kg-cm / 48.6 oz-in
Speed: 0.07 s (6.0V) / 0.06 s (7.4V) / 0.05 s (8.2V)
Weight: 19.86 g (0.7 oz)
Dimension：23 x 12 x 27.25 mm
Torque (7.4V): 3.0 kg-cm / 41.7 oz-in
Torque (8.2V): 3.5 kg-cm / 48.6 oz-in
Speed: 0.07 s (6.0V) / 0.06 s (7.4V) / 0.05 s (8.2V)
Weight: 19.86 g (0.7 oz)
Dimension：23 x 12 x 27.25 mm
Servo MKS HBL 6625
Torque (6.0V): 8.2 kg-cm / 113.9 oz-in
Torque (7.4V): 9.6 kg-cm / 133.3 oz-in
Torque (8.2V): 10.4 kg-cm / 144.4 oz-in
Speed: 0.16 s (6.0V) / 0.127 s (7.4V) / 0.11 s (8.2V)
Weight: 27.85 g (0.98 oz)
Dimension : 30 x 10 x 35.5 mm
Torque (7.4V): 9.6 kg-cm / 133.3 oz-in
Torque (8.2V): 10.4 kg-cm / 144.4 oz-in
Speed: 0.16 s (6.0V) / 0.127 s (7.4V) / 0.11 s (8.2V)
Weight: 27.85 g (0.98 oz)
Dimension : 30 x 10 x 35.5 mm
Servo MKS HV 747
Torque (6.0V) : 11.8 kg-cm / 163.9 oz-in
Torque (7.4V) : 13.8 kg-cm / 191.6 oz-in
Torque (8.2V) : 15 kg-cm / 208.3 oz-in
Speed : 0.17 s (6.0V) / 0.14 s (7.4V) / 0.13 s (8.2V)
Weight : 38.55 g (1.36 oz)
Dimension : 35.5 x 15 x 28.5 mm
Torque (7.4V) : 13.8 kg-cm / 191.6 oz-in
Torque (8.2V) : 15 kg-cm / 208.3 oz-in
Speed : 0.17 s (6.0V) / 0.14 s (7.4V) / 0.13 s (8.2V)
Weight : 38.55 g (1.36 oz)
Dimension : 35.5 x 15 x 28.5 mm
Servo KST X 08 Plus
Operation Voltage(rated): DC7.4V
Operation Voltage Range: DC3.8-8.4V
Torqur: 2.40kg.cm@3.8V
3.85kg.cm@6.0V
4.85kg.cm@7.4V
5.30kg.cm@8.4V
Speed: 0.18sec/60° @3.8V
0.15sec/60° @6.0V
0.12sec/60° @7.4V
0.09sec/60° @8.4V
Size: 23.5*8*16.8mm
Weight: 9g
Operation Voltage Range: DC3.8-8.4V
Torqur: 2.40kg.cm@3.8V
3.85kg.cm@6.0V
4.85kg.cm@7.4V
5.30kg.cm@8.4V
Speed: 0.18sec/60° @3.8V
0.15sec/60° @6.0V
0.12sec/60° @7.4V
0.09sec/60° @8.4V
Size: 23.5*8*16.8mm
Weight: 9g
Servo KST X 08H Plus
Operation Voltage(rated): DC7.4V
Operation Voltage Range: DC3.8-8.4V
Torqur: 2.40kg.cm@3.8V
3.85kg.cm@6.0V
4.85kg.cm@7.4V
5.30kg.cm@8.4V
Speed: 0.18sec/60° @3.8V
0.15sec/60° @6.0V
0.12sec/60° @7.4V
0.09sec/60° @8.4V
Size: 23.5*8*16.8mm
Weight: 9g
Operation Voltage Range: DC3.8-8.4V
Torqur: 2.40kg.cm@3.8V
3.85kg.cm@6.0V
4.85kg.cm@7.4V
5.30kg.cm@8.4V
Speed: 0.18sec/60° @3.8V
0.15sec/60° @6.0V
0.12sec/60° @7.4V
0.09sec/60° @8.4V
Size: 23.5*8*16.8mm
Weight: 9g

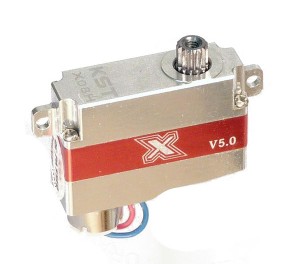

Servo KST X 08 V5.0
Operating Voltage:DC3.8V-8.4V
Size: 23.5*8*16.8mm
Torque: 2.8Kg.cm@8.4V
2.2Kg.cm@6.0V
1.4Kg.cm@3.8V
Speed: 0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@3.8V
Weight: 8g
Working Frequence: 1520us/333Hz, 900us-2100us
Size: 23.5*8*16.8mm
Torque: 2.8Kg.cm@8.4V
2.2Kg.cm@6.0V
1.4Kg.cm@3.8V
Speed: 0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@3.8V
Weight: 8g
Working Frequence: 1520us/333Hz, 900us-2100us
Servo KST X 08H V5.0
Operating Voltage:DC3.8V-8.4V
Size: 23.5*8*16.8mm
Torque: 2.8Kg.cm@8.4V
2.2Kg.cm@6.0V
1.4Kg.cm@3.8V
Speed: 0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@3.8V
Weight: 8g
Working Frequence: 1520us/333Hz, 900us-2100us
Size: 23.5*8*16.8mm
Torque: 2.8Kg.cm@8.4V
2.2Kg.cm@6.0V
1.4Kg.cm@3.8V
Speed: 0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@3.8V
Weight: 8g
Working Frequence: 1520us/333Hz, 900us-2100us
Servo KST X 08N V5.0
Operating Voltage:DC3.8V-8.4V
Size: 23.5*8*16.8mm
Torque: 2.8Kg.cm@8.4V
2.2Kg.cm@6.0V
1.4Kg.cm@3.8V
Speed: 0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@3.8V
Weight: 8g
Working Frequence: 1520us/333Hz, 900us-2100us
Size: 23.5*8*16.8mm
Torque: 2.8Kg.cm@8.4V
2.2Kg.cm@6.0V
1.4Kg.cm@3.8V
Speed: 0.09sec/60°@8.4V
0.15sec/60°@6.0V
0.18sec/60°@3.8V
Weight: 8g
Working Frequence: 1520us/333Hz, 900us-2100us
Servo KST X10 mini
Operating Voltage: DC6.0V-8.4V
Size: 30*10*30mm
Torque: 5.5kg.cm@6.0V
6.8kg.cm@7.4V
7.5kg.cm@8.4V
Speed: 0.13 sec/60°@6.0V
0.11 sec/60°@7.4V
0.09 sec/60°@8.4V
Weight: 23g
Size: 30*10*30mm
Torque: 5.5kg.cm@6.0V
6.8kg.cm@7.4V
7.5kg.cm@8.4V
Speed: 0.13 sec/60°@6.0V
0.11 sec/60°@7.4V
0.09 sec/60°@8.4V
Weight: 23g
Servo KST DS 215MG
Operating Voltage: DC6.0V-7.4V
Size: 23*12*27.50mm
Torque: 3.70Kg.cm@7.4V;
3.10Kg.cm@6.0V
Speed: 0.05sec/60°@7.4V;
0.06sec/60°@6.0V
Weight: 20g
Working Frequence: 1520us/333Hz, 800us-2200us
Size: 23*12*27.50mm
Torque: 3.70Kg.cm@7.4V;
3.10Kg.cm@6.0V
Speed: 0.05sec/60°@7.4V;
0.06sec/60°@6.0V
Weight: 20g
Working Frequence: 1520us/333Hz, 800us-2200us
Servo KST DS 315MG
Operating Voltage: DS4.8V-8.4V
Size: 23*12*27.50mm
Torque: 4.8Kg.cm@8.4V;
4.3Kg.cm@7.4V;
3.5Kg.cm@6.0V;
2.80Kg.cm@4.8V
Speed: 0.07sec/60°@8.4V;
0.08sec/60°@7.4V;
0.09sec/60°@6.0V;
0.1sec/60°@4.8V
Weight: 20g
Working Frequence: 1520us/333Hz, 900us-2100us
Size: 23*12*27.50mm
Torque: 4.8Kg.cm@8.4V;
4.3Kg.cm@7.4V;
3.5Kg.cm@6.0V;
2.80Kg.cm@4.8V
Speed: 0.07sec/60°@8.4V;
0.08sec/60°@7.4V;
0.09sec/60°@6.0V;
0.1sec/60°@4.8V
Weight: 20g
Working Frequence: 1520us/333Hz, 900us-2100us
Servo KST DS 213MG
Operating Voltage: DC4.8V-6.0V
Size: 23*12*24.5mm
Torque: 2.5Kg.cm@4.8V
3.0Kg.cm@6.0V
Speed: 0.08sec/60°@4.8V
0.07sec/60°@6.0V
Weight: 16g
Working Frequence: 1520us/333Hz 900us-2100us
Size: 23*12*24.5mm
Torque: 2.5Kg.cm@4.8V
3.0Kg.cm@6.0V
Speed: 0.08sec/60°@4.8V
0.07sec/60°@6.0V
Weight: 16g
Working Frequence: 1520us/333Hz 900us-2100us
Servo KST DS 725MG
Operating Voltage: DＣ6.0V-8.4V
Size: 40.50*20*37mm
Torque: 18Kg.cm@8.4V
16Kg.cm@7.4V
13Kg.cm@6.0V
Speed: 0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V
Weight: 70g
Working Frequence: 1520us/333Hz, 900us-2100us
Size: 40.50*20*37mm
Torque: 18Kg.cm@8.4V
16Kg.cm@7.4V
13Kg.cm@6.0V
Speed: 0.07sec/60°@8.4V
0.08sec/60°@7.4V
0.09sec/60°@6.0V
Weight: 70g
Working Frequence: 1520us/333Hz, 900us-2100us
Servo KST X15-908
Operating Voltage（Rated): DC7.4V
Operating Voltage: DC6.0~8.4V
Size: 35.5*32.5*15mm
Torque: 6.5Kg.cm@6.0V
8.0Kg.cm@7.4V
9.2Kg.cm@8.4V
Speed: 0.10sec/60°@6.0V
0.90sec/60°@7.4V
0.08sec/60°@8.4V
Weight: 40g
Operating Voltage: DC6.0~8.4V
Size: 35.5*32.5*15mm
Torque: 6.5Kg.cm@6.0V
8.0Kg.cm@7.4V
9.2Kg.cm@8.4V
Speed: 0.10sec/60°@6.0V
0.90sec/60°@7.4V
0.08sec/60°@8.4V
Weight: 40g
