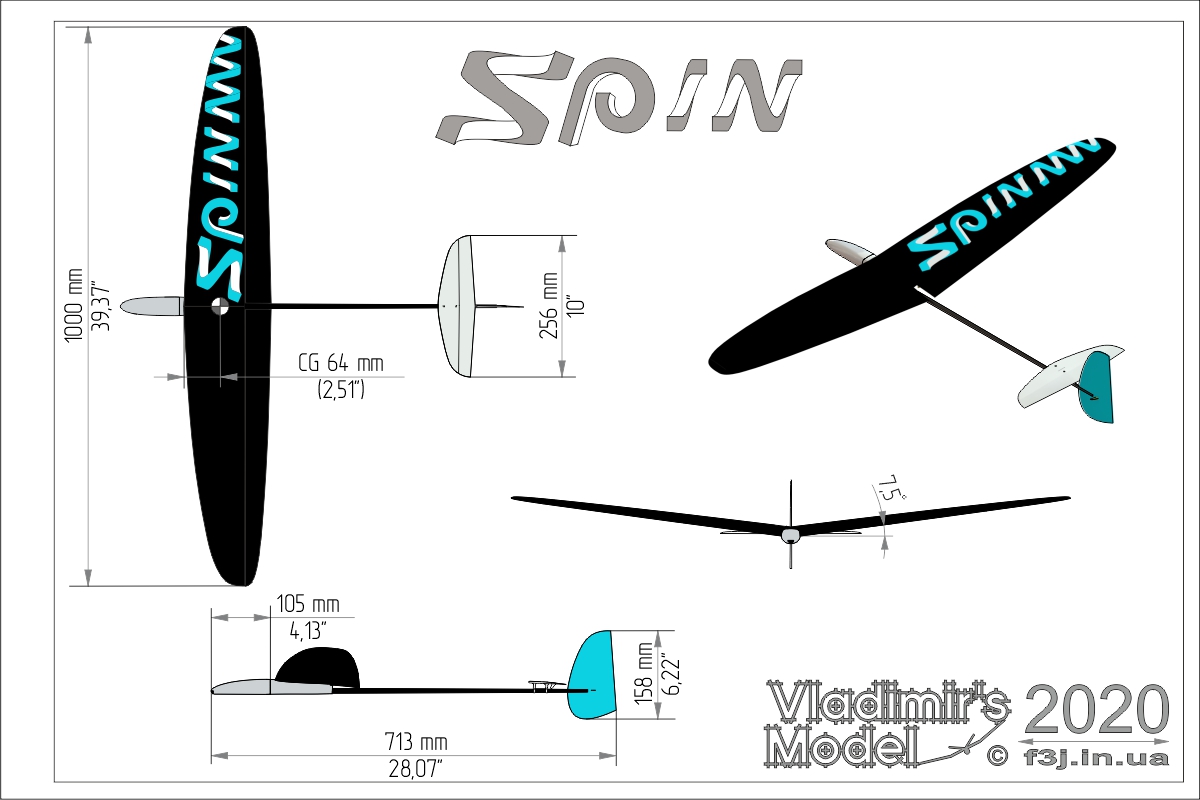

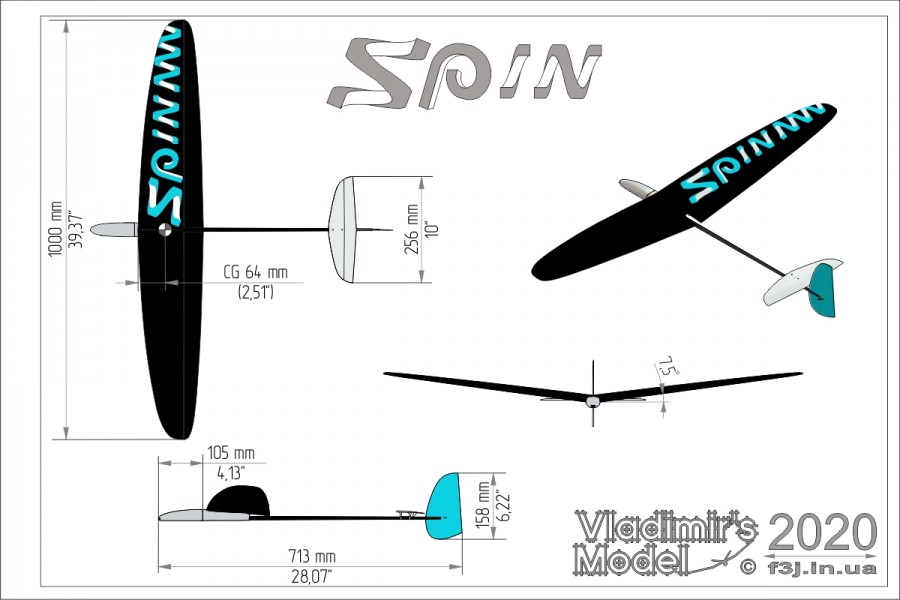

Technical data of Spin
Spin wing
Hi tech, ultralight Carboline covering, Rohacell core Spin wing has weight 50g only.
Ailerons hinge is ready and ailerons even has ready slots for the horn.
Frame for D47 servos (or similar) is installed already. You just need screw the servos inside and glue ready horns to the ready slots by CA (superglue).
Spin wing construction
1. Ultralight Rohacell core;
2, 4. Carbon spar cap;
3. Carboline spar shear web;
5. Aileron hinge tape;
6,7. Carboline skin layer;
8. Lower strengthening of wing fitting;
9. Solid filler;
10. Upper strengthening of wing fitting;
11. The aileron shear web.

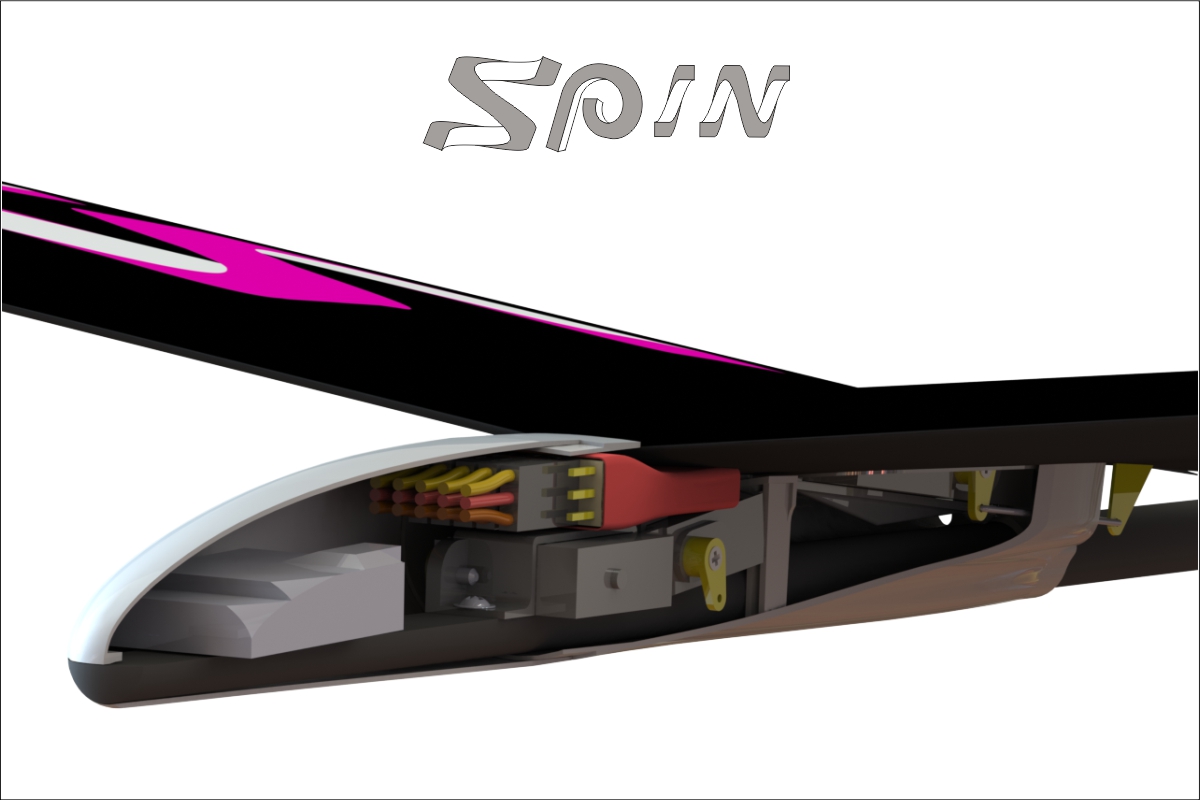

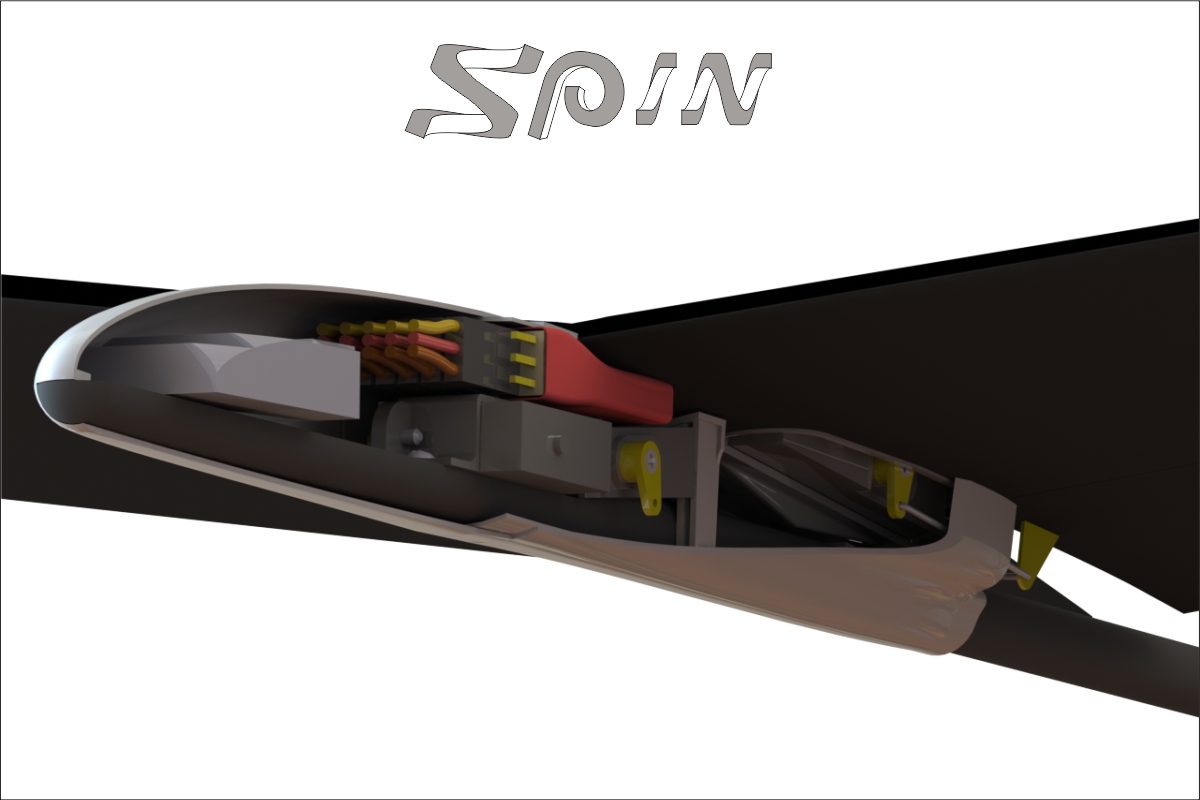

Spin fuselage
Fuselage construction based on Hi-Tech prepreg carbon boom with impact PA fairing and nosecone with canopy.
You will be surprised at the ease of servo installation. Your friend never believe you, the where are 4 servos, battery and receiver inside.
Carbon elevator and ruder rods is installed already and has ready installed rod ends for fit to the horns.
Horizontal stabilizer pylon is glued already and the boom has ready slot for the fin installation.
Spin tail
Horizontal and vertical stabilizers is glass covering rohacell core with Hi-Tech carbon spar inside. It is ready completely with ready elevator and rudder hinges.
Be ready to catch all small thermals, cover long distance or reach extreme speed due unique airfoils from Joe Wurts.

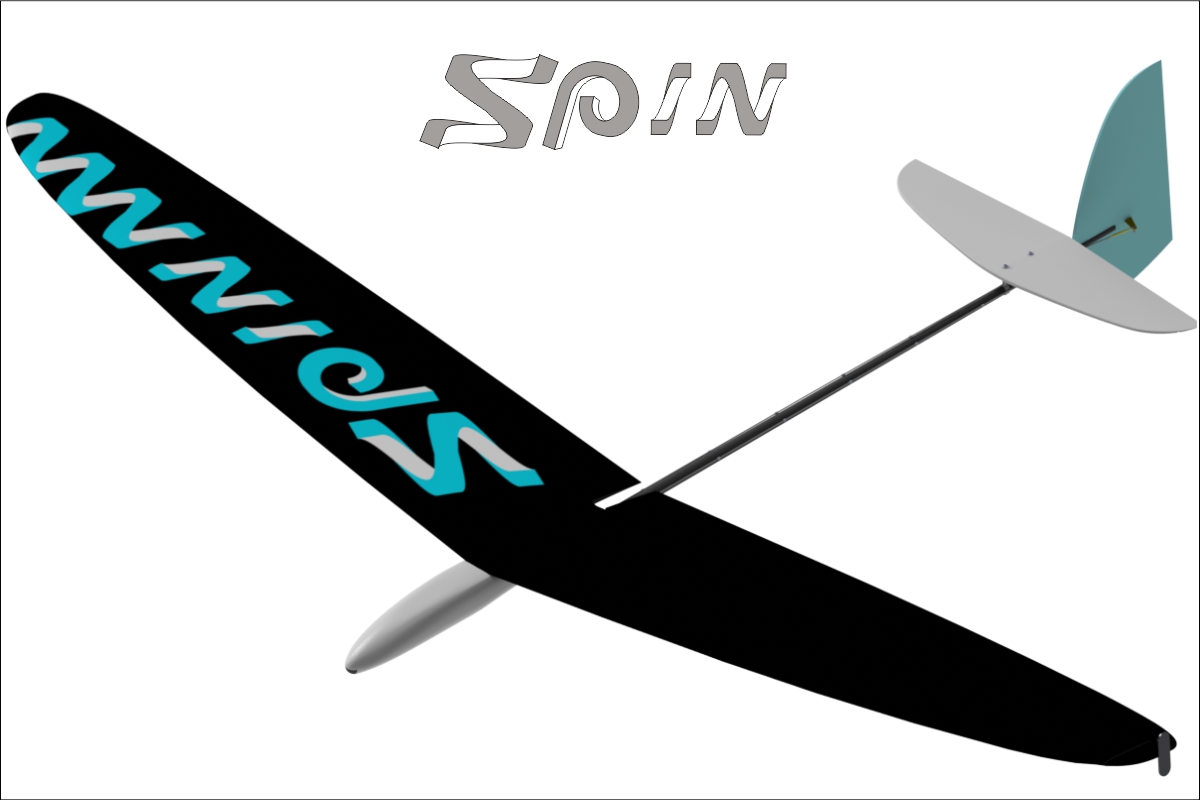

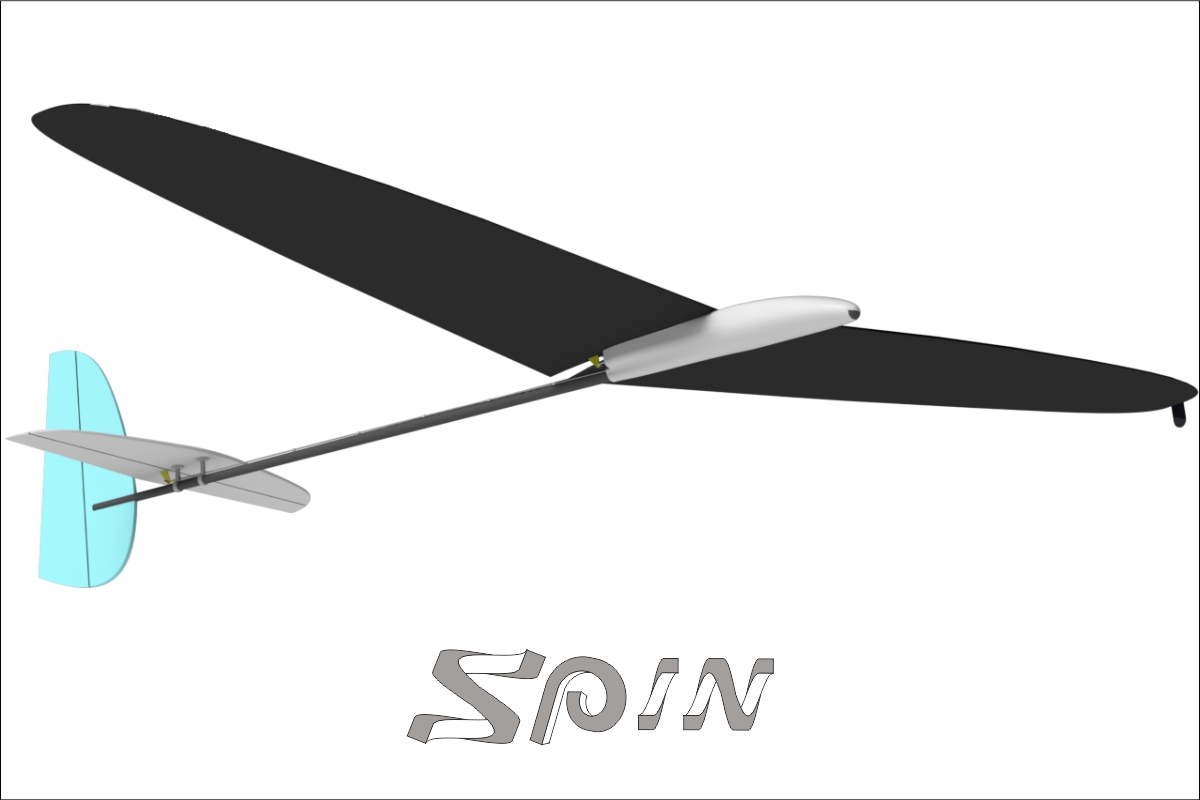

Spin is 99% ready to fly from the kit. The wing is full ready with ready aileron hinges and installed servo frame for D47 (or similar) servos. Ready aileron rods and horn is included to the kit. Even slots for all horns are ready. Fuselage is full assembled, tail rods are installed, horizontal and vertical stabilizers are full ready.
